Description

About this item

• [9 Channel] The HDMI 3×3 Video Wall Controller Can Process 1 High Definition Signals(Computer, Laptop, DVD player, Console etc.) To 9 Screens(Rear Projection Units, LCD TVs, Monitor etc.) for Maximum Picture Clarity.
• [VARIOUS MODES] This Video Processor Supports A Variety of Splicing Modes:1×1 1X2 1X3 1X4 1X5 1X6 2X1 3X1 4X1 5X1 6X1 2X2 2X3 2X4 3X2 3X3 4X2, And Use Two Devices to Cascade Mode – 3×4 4×3 4×4
• [HIGH DEFINITION] This Video Wall Controller Support Input Video Resolutions: 4K@/30Hz, 1080p @ 25/30/50/60HZ, 1080i @ 50/60Hz (For Direct TV and Other Broadcast Satellites); Output Resolution: 1080p @ 60Hz (in each display)(Totally Resolution Can Reach 3840×2160/60HZ).
• [DURABLE] Plug and Play, No Driver Needed. This HDMI Splitter Also Offers Increased Durability And Heat Dissipation and Ventilation with Its Extremely Robust Metal Casing With Holes
• [Edge Masking]Support Edge Mask Processing, The Image Will Be Without Deformation or Stretching, and More Natural and Realistic.
• [AUDIO SUPPORT] This Video Wall Controller Can Also Process Audio Signals, Giving You the Full Audio Experience Along With the Visuals.
• [COMPATIBILITY] This Video Wall Controller is Compatible With Various Video Output Sources, Including Rear Projection Units, LCD TVs, and More.
• [Warranty & Tech Support ] 1 Years RIJER-Free Warranty and Free Lifetime Tech Support.

Product Description

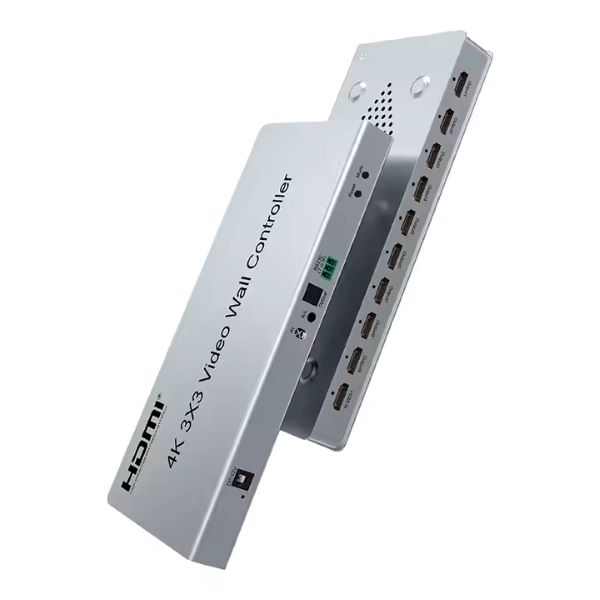

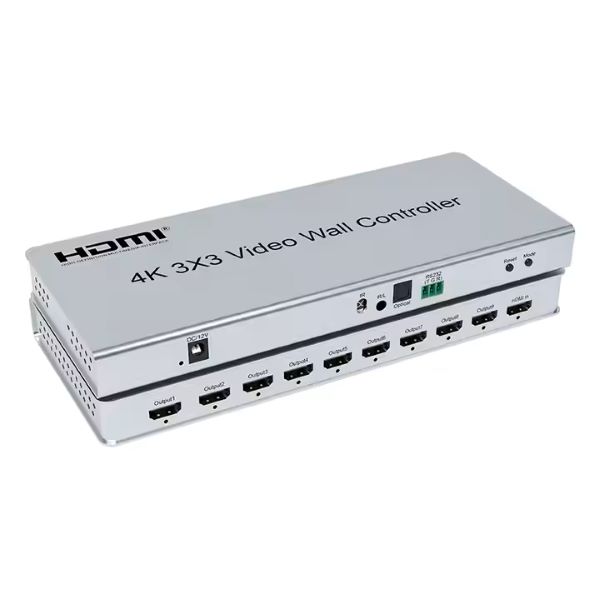

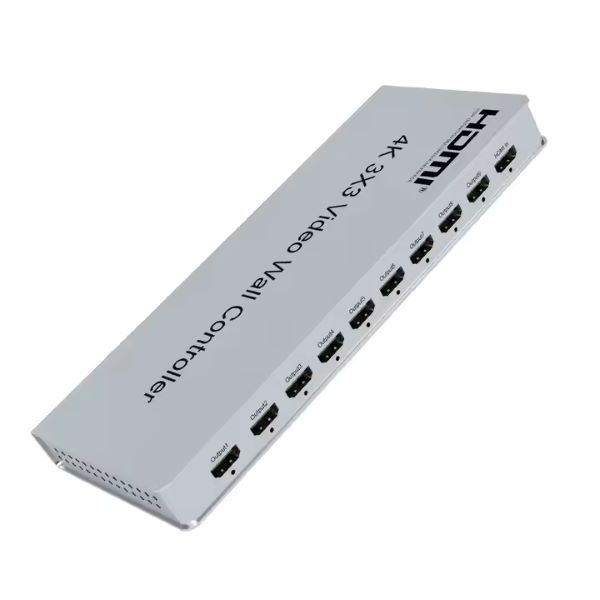

The 3×3 video wall controller , support 1-way HDMI input and 9-way HDMI outputs, the main function is to divide a complete HD image signal into 9 blocks and assign to 9 video display units (Max resolution can reach 3840×2160@60HZ), Complete with 9 HDMI high-definition video display units to form a large dynamic image screen.

Features

* Support HDMI input 1.4 (3840×2160/30HZ Backward compatibility)

* Support 9 HDMI outputs；support resolution of 1080P each output, whole resolution can reach 3840×2160/60HZ

* Support multiple splicing modes, easy to operate, plug and play；

* Support 8/10/12 bit deep color;

* Support IR control+button press(mode switch, reset)+RS232

* Support out audio (if no connect with out audio), voice will come from the output device

Support modes

1×1 1×2/1×3/1×4/1×5/1×6/2×1/2×2/2×3/2×4/3×1/3×2/3×3/4×1/4×2/5×1/6×1

not supporty 1×7 1×8 1×9 9×1 8×1 7×1 modes

Edge masking

Because of the physical border gap of display, the image will appear pull-apart on visually and feel very unnatural. Through the edge mask processing, the image will be without deformation or stretching, and more natural and realistic.
