4K 60hz 4×1 HDMI Switcher 4 In 1 Out 3D Optical Audio Extractor Video Converter

Description

4K HDMI Switcher 4×1 4K@60Hz

Item Description:

Brand new and high quality,new arrival product,buy with confidence!

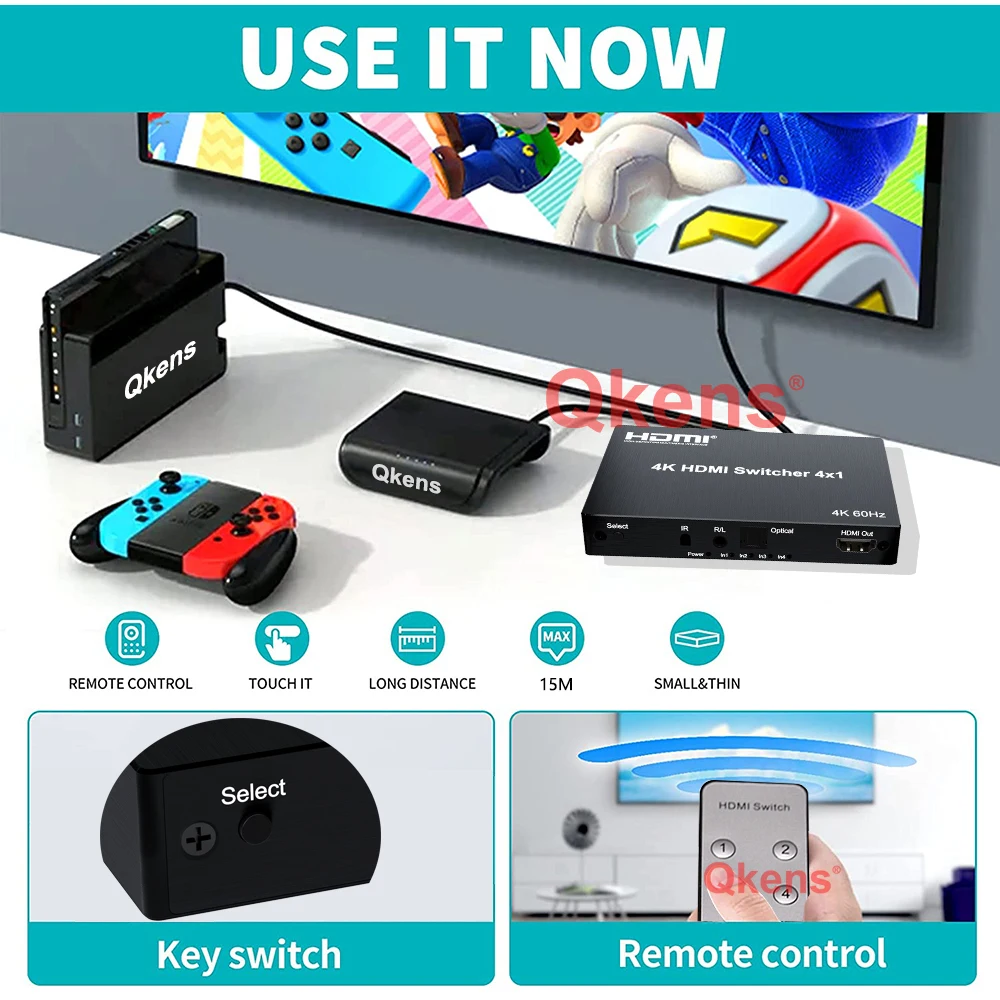

This Qkens 4×1 HDMI switcher allows 4 HDMI ports to be switched to a single display terminal via remote control
or buttons on unit. The switcher can be placed at the end of a long HDMI cable to regenerate the HDMI signal.
The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz,4K/60Hz .

Features:
* Support 3D video format;
* Support for HDMI audio extraction, 3.5mm headphone and optical fiber digital audio output;

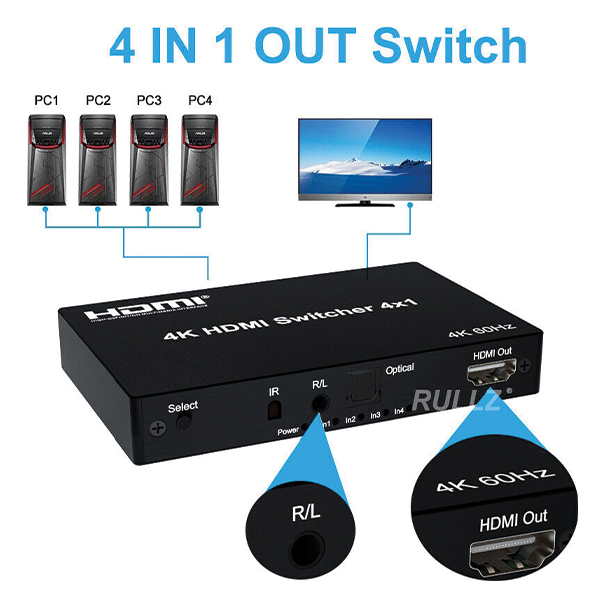

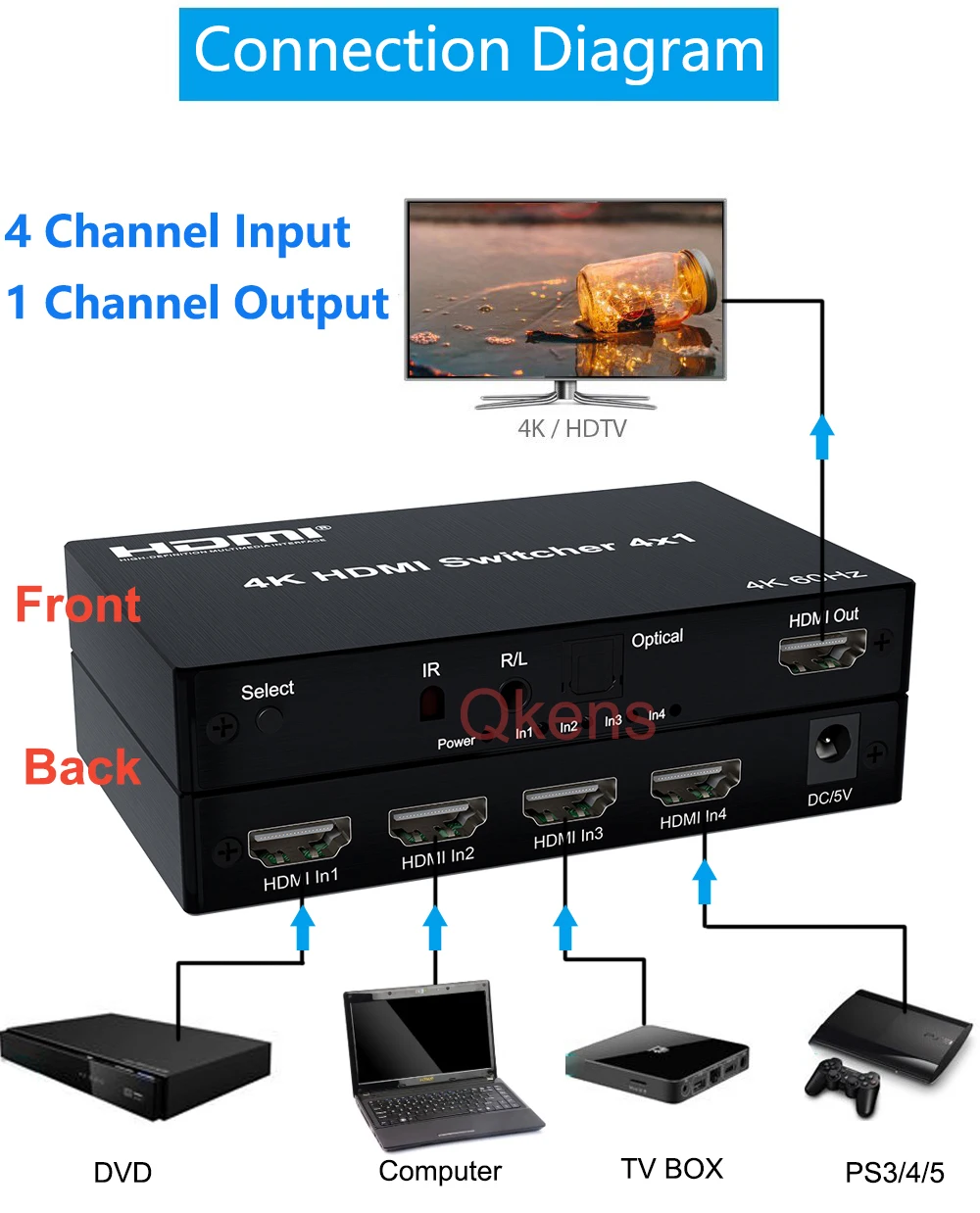

* 4 HDMI signal input switch to 1 HDMI display device;
* Support LPCM/Dolby/DTS 5.1 channel;

Parameters:
HDMI resolution ………………………………………………………………up to 3840*2160/60Hz
Support video format …………………………………………………………….8/10/12 bit deep color
Support audio format …………………………………………………………..LPCM/DTS/Dolby-AC3
Max bandwidth …………………………………………………………………………….. 600MHz
Max baud rate …………………………………………………………………………….. 3x6Gbps
Input cable distance …………………………….. 4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Output cable distance …………………………… 4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Max working current ……………………………………………………………………….. 850mA
Power adapter format …………….. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A
Operating Temperature range ……………………………………………………… (-15 to +45℃)
Operating Humidity range …………………………………….. 5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………………………………..approx.122x80x19 (mm)
Weight ……………………………………………………………………………………approx. 170g

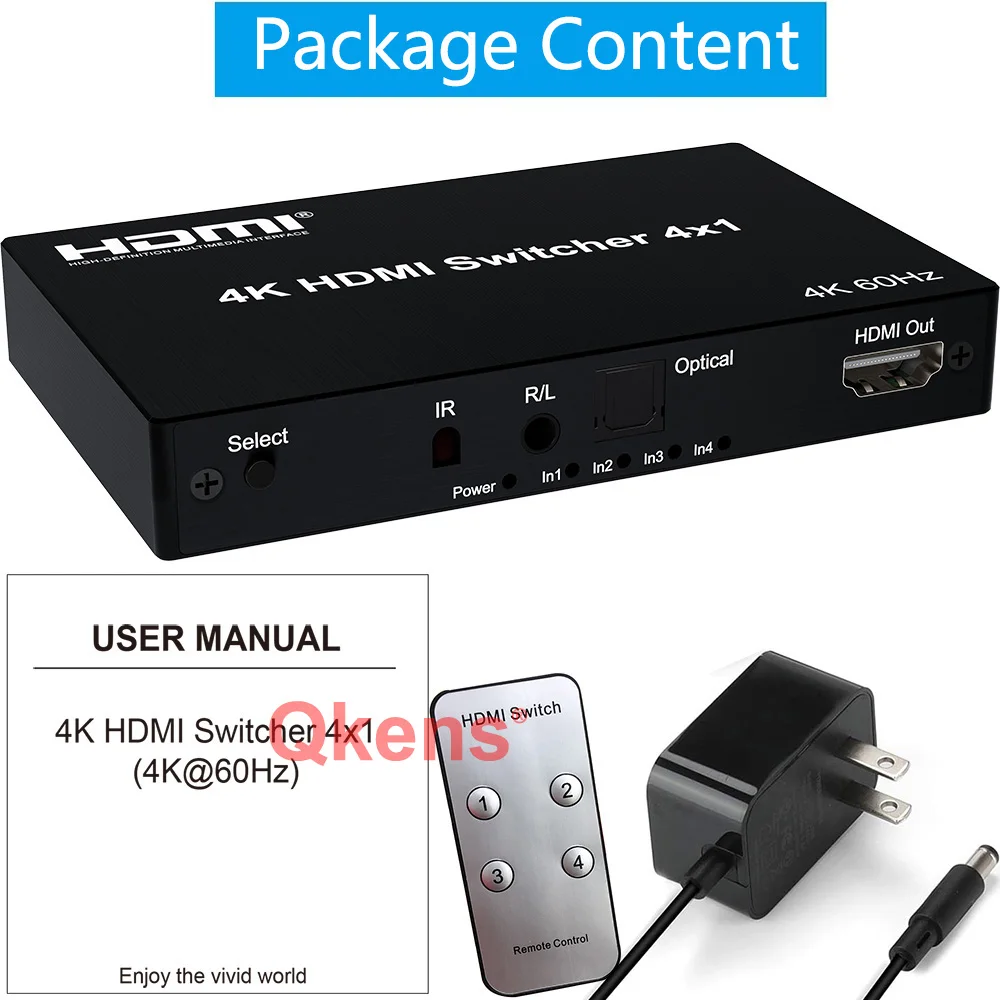

Package Content:

1. HDMI Switcher 4×1    1PCS
2. IR Remote Control without battery   1PCS
3. 5V power adapter    1PCS
4. User Manual    1PCS

Without retail box and other accessories,if any need,pls contact us first
